Stuffed Corn Chips Production Line(CSL300)

Stuffed Corn Chips Production Line | Automatic Filled Snack Production Equipment

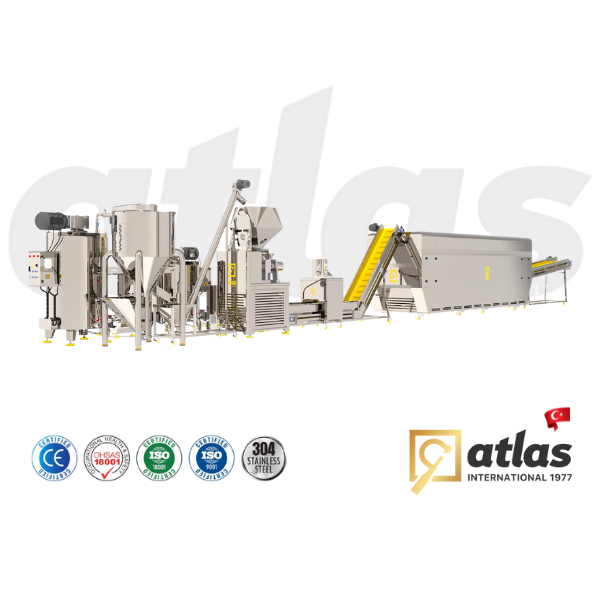

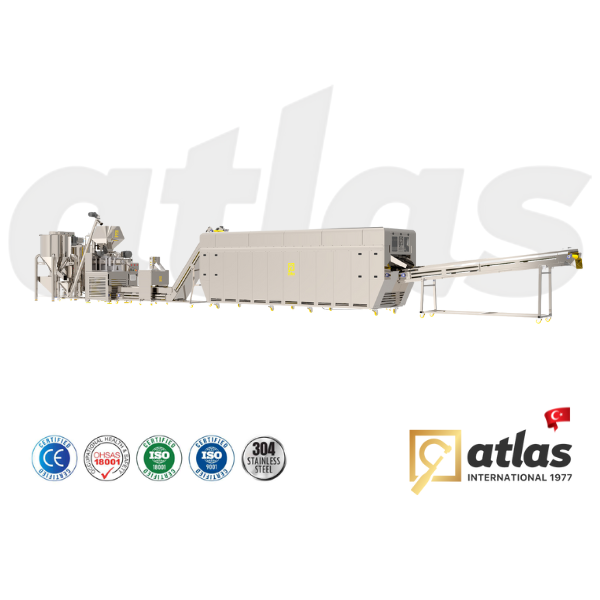

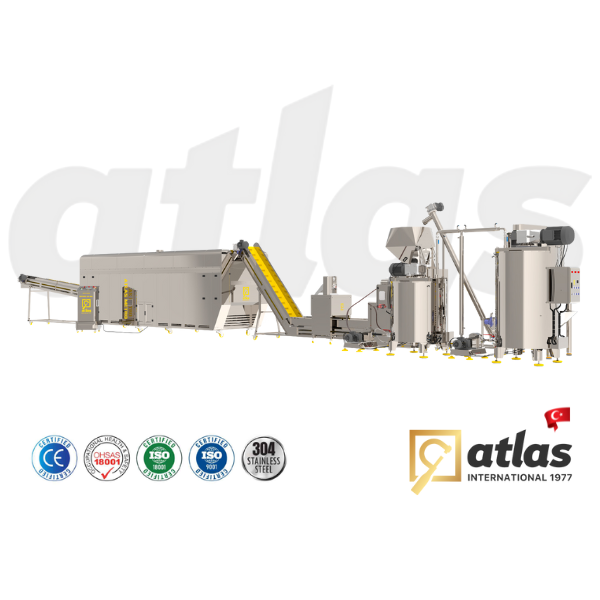

Atlas’s Stuffed Corn Chips Line is a fully automated, high-precision solution for producing premium stuffed corn snacks, including filled sticks and finger-shaped chips. With a production capacity of 150–200 kg/hour, 92 kW electric power, and a space-saving 70 m² layout, this line is constructed with 304 stainless steel for food-safe, durable operation.

Core components include a corn blender, spiral conveyor, and the advanced ATLAS EXTRUSION 2024 for forming snack bases. A 600 kg chocolate cooking tank and a 500 kg stuffing mixer (both double-jacketed with electric resistance heating) ensure smooth melting and blending of fillings like chocolate or cream. The stuffed corn cutter allows precise control of snack size using an inverter-regulated knife. Chips are then transferred by conveyor to a customizable drying oven (diesel, gas, or electric system by Riello Italy), and finally cooled via a cooling conveyor to preserve texture and shape before packaging.

Technical Specifications

Production Capacity	150-200 Kg/Hour
Electric Power	92 Kw
Required Area	70 m2
Structure Material	304 Stainless Steel

Line Parts:

Corn Blender:
Function: mixing and hydrating corn

Spiral Conveyor:
Function: Transferring the Materials spirally from the corn blender to the extruder

Extruder:
Model: ATLAS EXTRUSION 2024

Production Capacity: 150 Kg/h
Chocolate Cooking Tank
Capacity: 600 kg

Function: The tank is designed as a double jacket from which the water is heated via the electric resistances to facilitate melting and mixing of the chocolate.

Storage & Stuffing Mixer:
Capacity: 500 kg
Function: The tank is designed as a double jacket from which the water is heated via the electric resistances to facilitate melting and mixing of the chocolate.

Stuffed Corn Finger Shape Cutter:
Control of the length of the sticks and fingers of chips with an inverter that controls the speed of the knife

Conveyor:
Function: transferring stuffed corn chips to oven

Drying Oven:
Function: roasting and drying corn chips and fully extracting humidity

Working System: Customized
* Diesel system (Riello Italy)
* Gas system (Riello Italy)
* Electric heater system

Cooling Conveyor:
Function: transporting and cooling the stuffed corn sticks
